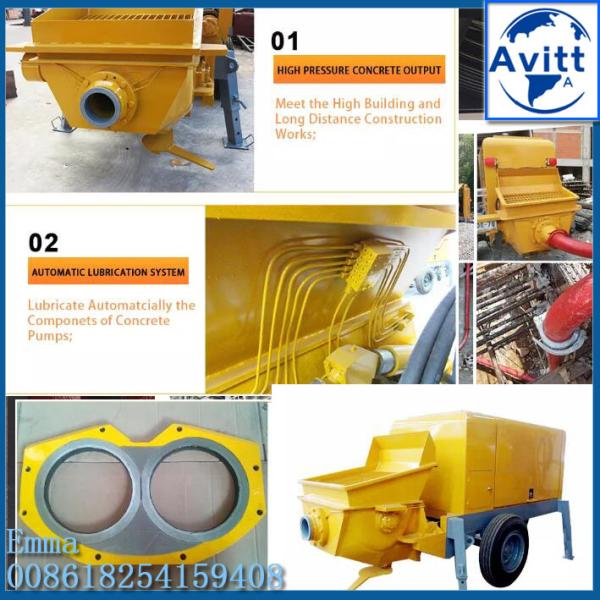

DHBT30 Diesel Concrete Pump Engine Power Mounted On The Moveable Trailer
Performance parameters
The concrete pump is mainly composed of a pump body and a delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline.
It is mainly used in house construction, bridge and road construction.
Concrete pumps are available in diesel and electric options, as well as in different delivery distances and particle diameters.
The machine has the characteristics of strong pressure, long conveying distance and stable operation.
Specification
| Items | HBTS40R | HBTS60R | HBTS80R | HBTS90R |
| Max. theo. pumping capacity | 40m3/h | 60m3/h | 80m3/h | 90m3/h |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve |
| Concrete cylinder | Ф180*1,300 mm | Ф200*1,300 mm | Ф200*1,650 mm | Ф200*1,800 mm |
| Diesel engine power | 82 kw | 129 kw | 140 kw | 176 kw |
| Circuit type | Open circuit | Open circuit | Open circuit | Open circuit |
| Max. conveying distance | 120/500 m | 120/500 m | 160/800 m | 360/1200 m |
| Max. aggregate diameter | 40 mm | 40 mm | 40 mm | 40 mm |
| Inside diameter of delivering pipe | Ф125 mm | Ф125 mm | Ф125 mm | Ф125 mm |
| Overall dimensions | 5,000*1,850*1,700 mm | 4,820*1,750*1,770 mm | 5,800*2,000*1,750 mm | 6,000*2,200*2,250 mm |
| Total weight | 5,500 kg | 7,200 kg | 7,700 kg | 8,200 kg |
Our Skilled Team
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field. Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction are always available and acceptable.
Product features:
1. Agitation by the entire shaft axis design, embolization motor, strictly ensures the coaxial.
2. Double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
3. The distribution valve adopts the advanced S pipe valve system which consists of hard alloy eyeglass plates, cutting rings and rubber springs.
4. It has good sealing performance; the structure is simple and reliable, and convenient replacement of the wearing parts;
5. The pump is assembled through streamlined production with strictly control on the process to make sure its high quality.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.
Photos
